You are here: CollectionsOnline  /  Design for the Discount Office with, at each end, a segmental clerestory window and an aisle screened by piers supporting a segmental arch and faced with pilasters, 16 November 1805 (2)
top left corner
top right corner
bottom left corner
bottom right corner
image Image 1 for SM (7) volume 60/33 (8) volume 75/75
image Image 2 for SM (7) volume 60/33 (8) volume 75/75
  • image Image 1 for SM (7) volume 60/33 (8) volume 75/75
  • image Image 2 for SM (7) volume 60/33 (8) volume 75/75

Reference number

SM (7) volume 60/33 (8) volume 75/75

Purpose

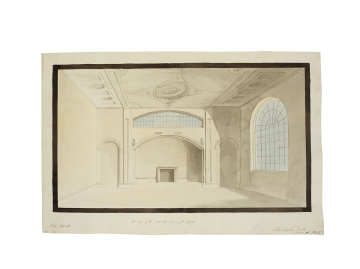

Design for the Discount Office with, at each end, a segmental clerestory window and an aisle screened by piers supporting a segmental arch and faced with pilasters, 16 November 1805 (2)

Aspect

7 Interior perspective looking north 8 Interior perspective looking west; and a rough (pencil) elevation of a skylight

Inscribed

7 View of the intended Discount Office 8 The Bank, A view of the intended Discount Office

Signed and dated

(7) Nov 16 / 1805 (8) Lincolns Inn Fields / Novr 16 1805

Hand

Soane office

Notes

Drawings 7 and 8 show segmental clerestory windows on both sides of the room. As in drawings 5 and 6, the ceiling and the pilasters organise the centre of the room into three parts. Incised line ornament frames the semicircular-headed arches (those on the west side are blind).

Level

Drawing

Digitisation of the Drawings Collection has been made possible through the generosity of the Leon Levy Foundation

If you have any further information about this object, please contact us: drawings@soane.org.uk
