[43] Design for the dome of the Doric Vestibule and the exterior facing Princes Street, June and July 1803

Aspect

Plan and elevation of the attic of the Doric Vestibule; and rough elevation

Scale

bar scale

Inscribed

(Soane) Sinkings / ¾ wide & ½ inch deep and dimensions given

Signed and dated

  • June 5 1803 and modifications dated July 21: 1803

Hand

Soane and Soane office

Notes

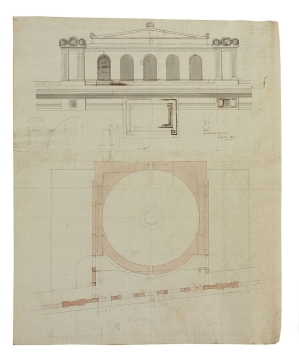

The attic of the Doric Vestibule was over the entrance on Princes Street, forming a part of the screen wall. This drawing shows a design for the attic, consisting of five arches between fluted twin pilasters surmounted by acroteria. Each acroterion surrounds paterae and a scallop shell tympanum. A pediment with antefixes has been adden in brown pen by Soane. Below the attic, and aligned with the fluted pilasters of the attic, are two panels with rosettes. See SM 71/49 for a survey of the attic as built.
