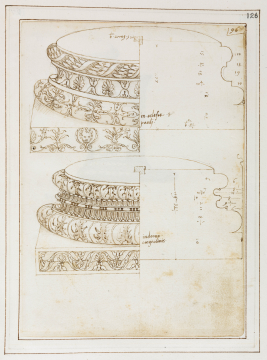

Drawing 1 (top): Column base from San Paolo fuori le Mura

Aspect

Half section with perspectival elevation from above, with measurements

Scale

To an approximate scale of 1:12

Inscribed

in. eclesia .S./ paulj. (‘In the church of San Paulo’); [measurements]

Signed and dated

  • c.1513/14
    Datable to c.1513/14

Medium and dimensions

Pen and brown ink and grey-brown wash over stylus lines, traces of black chalk and compass pricks

Hand

Bernardo della Volpaia

Notes

This Attic base is one of several once inside San Paolo fuori le Mura which, following the catastrophic fire of 1823, are now in ruined condition and located outside the building in a repository of architectural fragments (Krautheimer 1937–77, 5, pp. 140–41). The much-drawn bases exhibit many variations of decorative detail, but all have a plinth with faces embellished with buds, scrolls, masks and other motifs, a lower torus with a pattern of buds and leaves, a scotia with a rather simpler arrangement of buds and anthemion, and an upper torus ornamented with a wreath of oak leaves and (on some drawings) acorns. No other drawing precisely matches this one in decoration, although it comes close to a detailed late sixteenth-century depiction by Alberto Alberti.

Representing the base as a frontal view with a quadrant removed to reveal the profile is a format used for several other depictions of bases in the codex and it again necessitated an adjustment to the receding line on the left-hand side of the plinth. The format is not seen in other early drawings, although depicting the base from just a little above is a feature of a previous drawing of a similar base from Giuliano da Sangallo’s Codex Barberini (except that this does not indicate the position of a fictional dowel hole). A drawing by Giovanni Francesco da Sangallo showing half an elevation is similarly annotated with measurements, but these are often slightly different.

OTHER IMAGES MENTIONED: [Giuliano da Sangallo] Rome, BAV, Barb. lat. 4424 (Codex Barberini), fol. 15 (Hülsen 1910, p. 25; Borsi 1985, pp. 104–05); [Giovanni Francesco da Sangallo] Florence, GDSU, 1804 Ar (Bartoli 1914–22, 6, p. 102; Frommel–Schelbert 2022, 1, pp. 206–07); [Alberto Alberti] Rome, ICG, Vol. 2502, fol. 8v (Forni 1991, p. 104)
