Drawing 3 (top right): Impost from the top storey of the Cortile del Belvedere’s lowest terrace

Explore Collections

You are here: CollectionsOnline / Drawing 3 (top right): Impost from the top storey of the Cortile del Belvedere’s lowest terrace

Browse

Books

Italian Renaissance Drawings
- Codex Coner: Architecture and Antiquarianism in early sixteenth-century Rome, c.1513-15 with seventeenth-century additions (100 folios)
  - SM volume 115/117

Use of images and copyright
Enlarge this Image

Print this image in A4 view

Reference number

SM volume 115/117c

Purpose

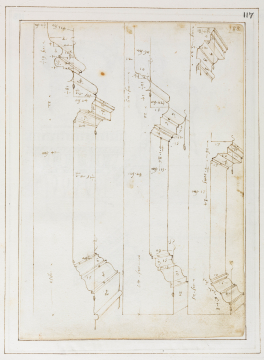

Drawing 3 (top right): Impost from the top storey of the Cortile del Belvedere’s lowest terrace

Aspect

Cross section and raking view, with measurements

Scale

To an approximate scale of 1:10

Inscribed

[Measurements]

Signed and dated

c.1513/14
Datable to c.1513/14

Medium and dimensions

Pen and brown ink and grey-brown wash over stylus lines and compass pricks

Hand

Bernardo della Volpaia

Notes

The impost, identified by Ashby, is the one on the third (and originally top) storey of the Cortile del Belvedere’s lowest terrace (cf. Letarouilly 1963, 2–3, p. 132), and in its design it roughly matches with the capitals of the free-standing columns there (drawn on Fol. 72r/Ashby 122). The drawing, as well as complementing all the others on the sheet in depicting a detail from the lower terrace, is positioned directly above that of the top-storey pedestal.

The profile in this drawing was copied by Michelangelo.

RELATED IMAGES: [Michelangelo] Florence, CB, 1Av: right side (De Tolnay 1975–80, 4, p. 49; Agosti–Farinella 1987, pp. 90–91)

OTHER DRAWINGS IN CODEX CONER OF SAME SUBJECT: Fol. 15r/Ashby 25; Fol. 27r/Ashby 43; Fol. 27v/Ashby 44; Fol. 28r/Ashby 45; Fol. 28v/Ashby 46; Fol. 46v/Ashby 78; Fol. 53v/Ashby 92; Fol. 54r/Ashby 93; Fol. 68r/Ashby 116; Fol. 69r/Ashby 117 (Drawings 1–2 and 4 on this page); Fol. 72r/Ashby 122
