Reference number

SM (10) 1/7/3 (11) 1/7/7

Purpose

Variant designs for the north elevation with rusticated columns, one dated 30 May 1805 (2)

Aspect

10-11 Elevation and wall plan of the entrance

Scale

(10-11) bar scale

Inscribed

10 The Bank of England, Elevation of the proposed Entrance to the Barracks, elevation labelled (capitals) Officer Room, Barracks and some dimensions given 11 The Bank of England, Design for Entrance to the proposed Barracks and dimensions given

Signed and dated

(10) 1805 (11) Lincolns Inn Fields / May 30th 1805

Hand

Soane office

Watermark

(10-11) J Ruse 1804

Notes

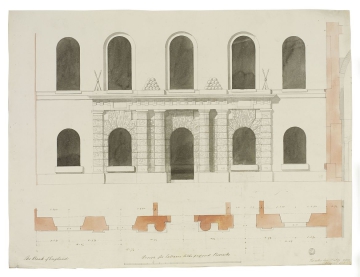

In drawings 10 and 11, the north entrance to the Bank consists of three rusticated bays at ground floor level. Drawing 10 shows two doors with a projection in between that is framed by twin attached columns. Drawing 11 shows a door in the middle bay, framed by attached rusticated columns and between windows and rusticated pilasters. The three bays in drawing 11 together support a full Doric entablature with pyramids of cannon-balls and (in drawing 11) crossed spears.

Level

Drawing

Digitisation of the Drawings Collection has been made possible through the generosity of the Leon Levy Foundation

If you have any further information about this object, please contact us: drawings@soane.org.uk

Sir John Soane's collection includes some 30,000 architectural, design and topographical drawings which is a very important resource for scholars worldwide. His was the first architect’s collection to attempt to preserve the best in design for the architectural profession in the future, and it did so by assembling as exemplars surviving drawings by great Renaissance masters and by the leading architects in Britain in the 17th and 18th centuries and his near contemporaries such as Sir William Chambers, Robert Adam and George Dance the Younger. These drawings sit side by side with 9,000 drawings in Soane’s own hand or those of the pupils in his office, covering his early work as a student, his time in Italy and the drawings produced in the course of his architectural practice from 1780 until the 1830s.

Browse (via the vertical menu to the left) and search results for Drawings include a mixture of Concise catalogue records – drawn from an outline list of the collection – and fuller records where drawings have been catalogued in more detail (an ongoing process).
